Figure Pr.29 - Pricing Logic Algorithm full picture

Figure Pr.29 - Pricing Logic Algorithm full picture : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	5/28/2022 7:16:22 AM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{4E10B2B8-E876-4ae5-805A-236046A7EC99}

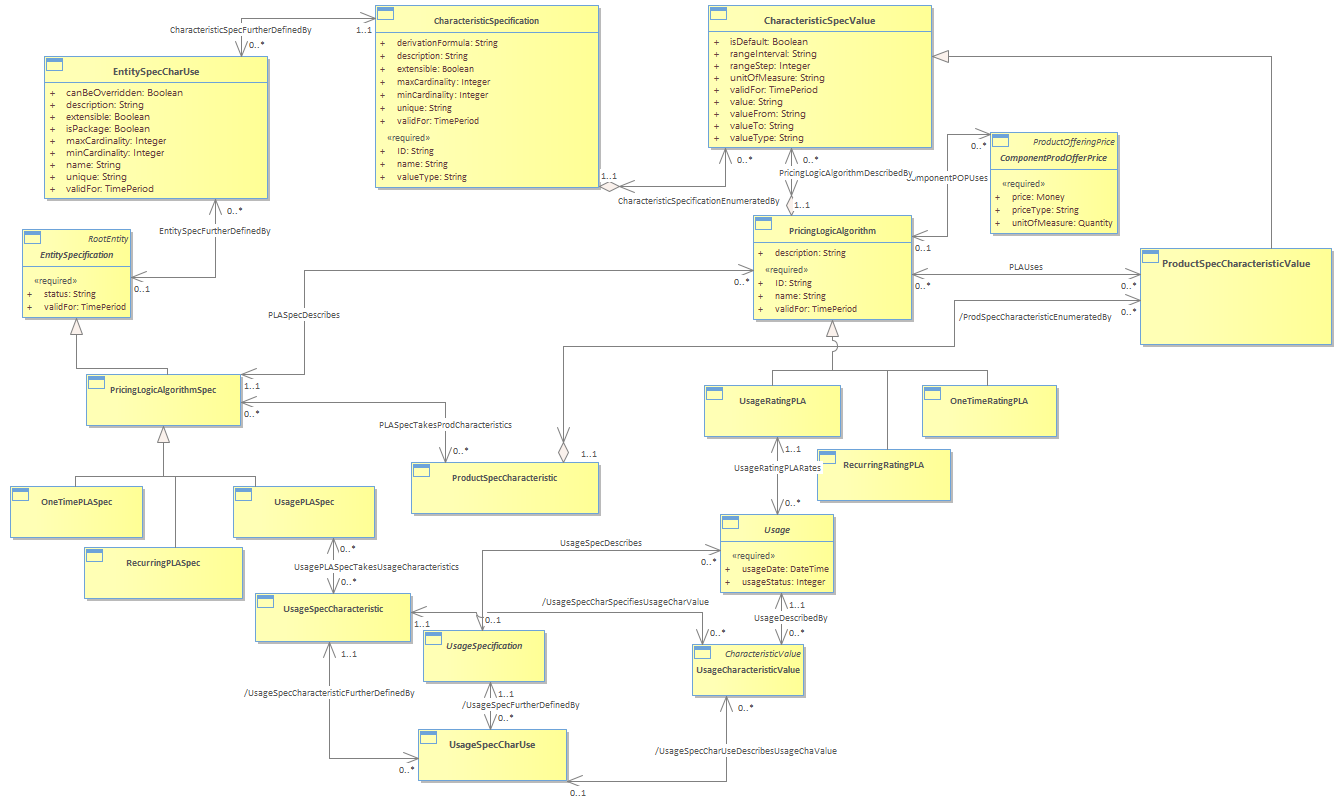

The following diagram shows the entire picture – how PLA Spec is defined, how PLA is instantiated, and the association to the possible event related characteristic values.<br/>
