Figure SO.33a - TIP Service Management

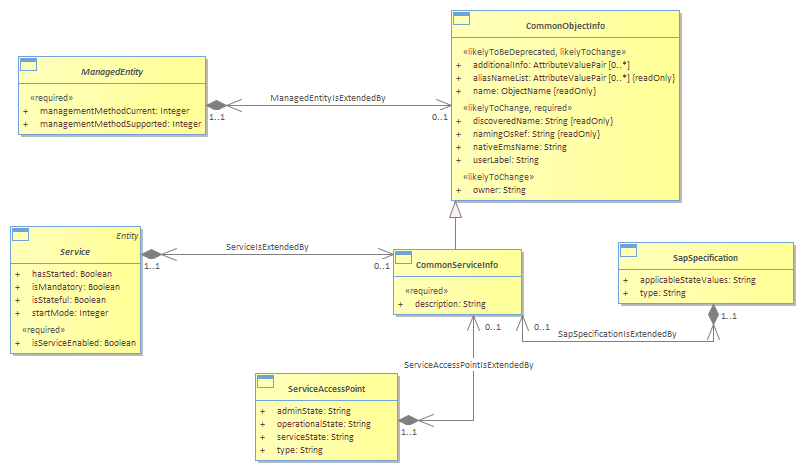

Figure SO.33a - TIP Service Management - CommonServiceInfo : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	4/25/2022 2:23:17 PM
Project:
Author:	Giu Platania
Version:	22.0
Advanced:
ID:	{1252977B-6127-435b-945B-76441094B7E1}

A number of the Service Management entities are extended via their association with the CommonServiceInfo entity and via inheritance with the CommonObjectInfo entity as shown in Figure SO.33a.<br/>
