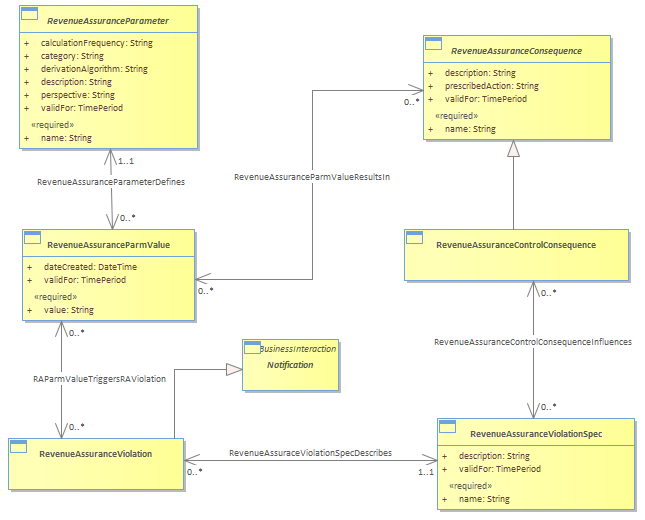

Figure RA.09 - RA Violation : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/11/2022 11:41:45 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{1249EB35-4515-4eda-B57C-EA82598B7F05} |
The Revenue Assurance Violation ABE models’ discrepancies identified based on applying the rules defined by Revenue Assurance Control entities as described in the section on Revenue Assurance Controls.<br/>Figure RA.09 depicts how a RevenueAssuranceParameterValue that does not meet a RevenueAssuranceObjective results in a RevenueAssuranceConsequence. The consequence influences the selection of a RevenueAssuranceViolationSpec that results in a RevenueAssuranceViolation, which is also associated to the parameter value that triggered its creation.<br/>In the customer billing control, the value of true (1) means that the objective has not been met and results in a consequence named “Customer Service Not Billed”. The consequence is related to a RevenueAssuranceViolationSpec named “Discrepancy in Customer Services Billed”. The consequence describes the RevenueAssuranceViolation named “Customer X Billing Violation”, which is also related to the control value of true.<br/><br/>
