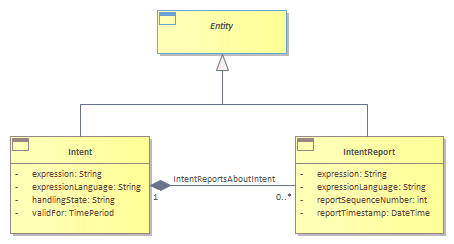

Figure I.01 - Intent ABE : SID diagram
Created: |
4/27/2022 10:39:53 AM |
Modified: |
6/3/2022 6:32:07 AM |
Project: |
|
Author: |
Kevin Scaggs |
Version: |
1.0 |
Advanced: |
|
ID: |
{1F50E533-F683-4bb9-9C76-075BB88CB358} |
<font color="#1a2746">An <b><i>Intent</i></b> contains a set of expectations expressed (<i>expression</i>) in statements using a particular <i>expressionLanguage.</i></font><br/><font color="#1a2746">An <b><i>Intent Report </i></b>reports on the status of a given Intent instance.</font><br/><font color="#1a2746">Objects of class <b><i>IntentReport</i></b> are individual intent reports that are created for an intent and as part of the communication between intent management functions.</font><br/><font color="#1a2746">In accordance with the <b><i>Intent</i></b> class, IntentReport does not have sub-classes for distinguishing different types of intent reports. The reasons and details of why a report was sent and for what purpose are stated “<i>expression</i>” attribute of IntentReport.</font><br/><font color="#1a2746">Both Intent and IntentReport extend from Entity</font><br/><br/>
