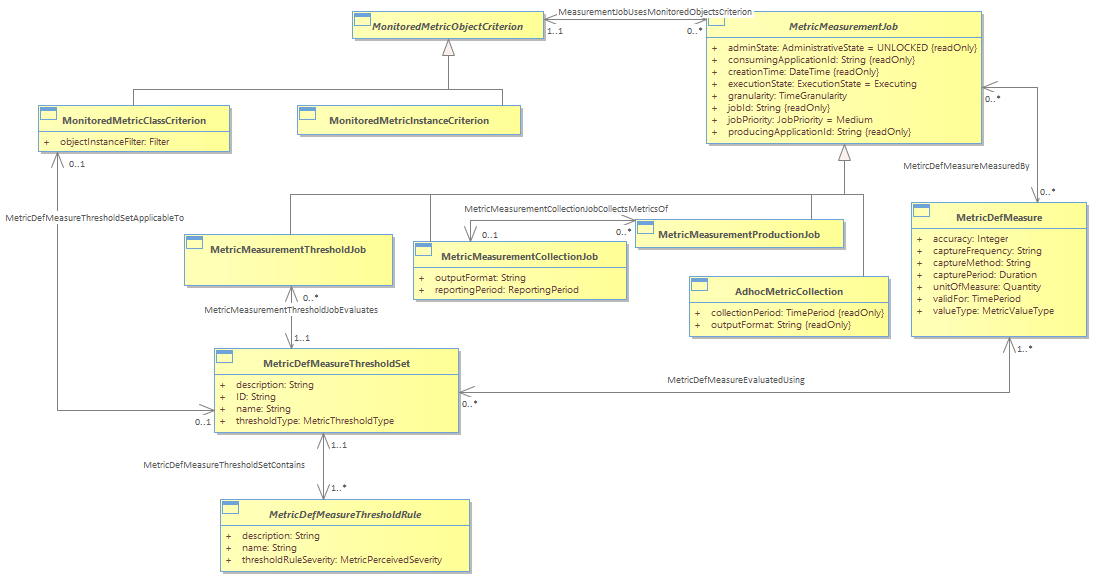

Figure Me.13 - Metric Threshold Job and MetricDefMeasureThresholdSet : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 3:07:39 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{B96D8C46-35C5-4fa9-B2CF-BF9E31BF46E4} |
The following Figure shows the different types of MetricMeasurementJob.<br/>A MetricMeasurementJob may be<br/> • either a job for evaluating thresholds defined over MetricDefMeasure (MetricMeasurementThresholdJob),<br/> • a job for producing MetricMesures according to a MetricDefMeasure (MetricMeasurementProductionJob),<br/> • a job for collecting MetricMeasures produced by another job (MetricMeasurementCollectionJob),<br/> • or a job for collecting MetricMeasures produced by another job to make available MetricMeasures for subscribers. (AdhocMetricCollection).<br/>A MetricMeasurementThresholdJob evaluates one MetricDefMeasureThresholdSet.<br/>A MetricMeasurementJob defines a scope of monitored objects using the MonitoredMetricObjectCriteria.<br/>A MetricMeasurementJob also defines a scope of monitored objects using the MonitoredMetricClassCriteria.<br/>
