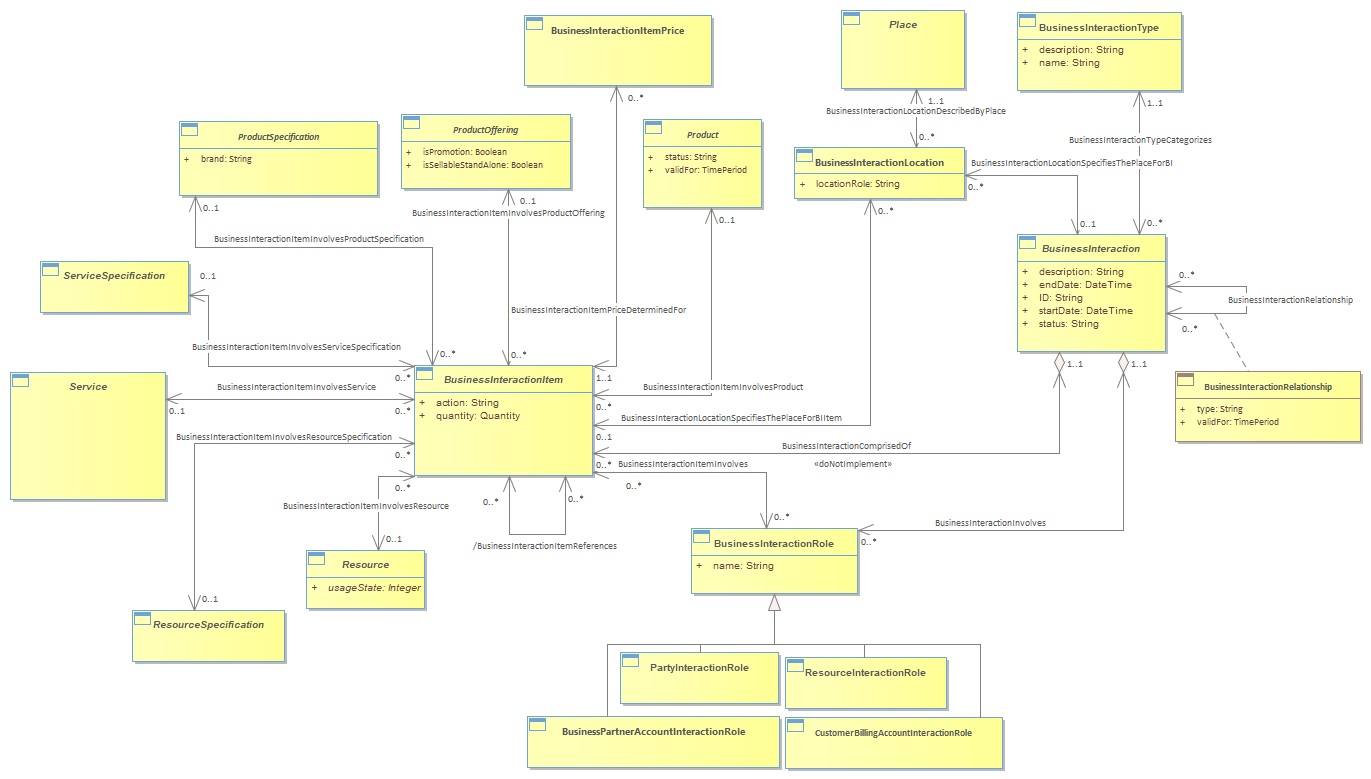

Figure BI.15 - Business Interaction Model (BusinessInteractionVersion not shown) : Class diagram
| Created: |
3/28/2022 3:51:09 PM |
| Modified: |
6/8/2022 10:51:07 PM |
Project: |
|
| Author: |
broth |
| Version: |
22.0 |
Advanced: |
|
| ID: |
{7097516D-5A12-4cc2-AC3B-59FB66E18627} |
DisputedAmountActivity is not a subclass of BusinssInteractionItem since it does not need all association from BusinessInteractionItem to other business entities<br/>DAARejected represents rejection by the enterprise, while DAACancelled represents cancellation of the request by the Customer.<br/>Further refinement of this model can be found in the Customer and Supplier/Partner domains.<br/>Figure BI.15 - Business Interaction Model (BusinessInteractionVersion not shown) shows the majority of the entities contained within the ABE.<br/>
