Company: Jio Platforms Limited
Product Title: JIO B2C System – ODA-C-TMFC001 v2.1.0 – Jio Product Catalog (JPC) – Jio Connect(X)
eTOM & SID Version: 24.0
Conformance Type: Solution Conformance
Assessment Completion Date: May 2025
Detailed Certification Report: JIO B2C System for Jio Product Catalog (JPC) – Jio Connect(X)

General Overview

This document provides details of JIO B2C System – ODA-C-TMFC006 v1.2.0 Jio Product Catalog (JPC) – Jio Connect(X), against the following ODA Core Frameworks:

• Business Process Framework (eTOM) version 24.0
• Information Framework (SID) version 24.0

The assessment included a review of the methodology approach to process and information modeling, respectively against the TM Forum’s Business Process Framework (eTOM) and the Information Framework (SID) according to the specific processes and entities submitted in scope for the Assessment.

Solution Functionality/Capability Overview

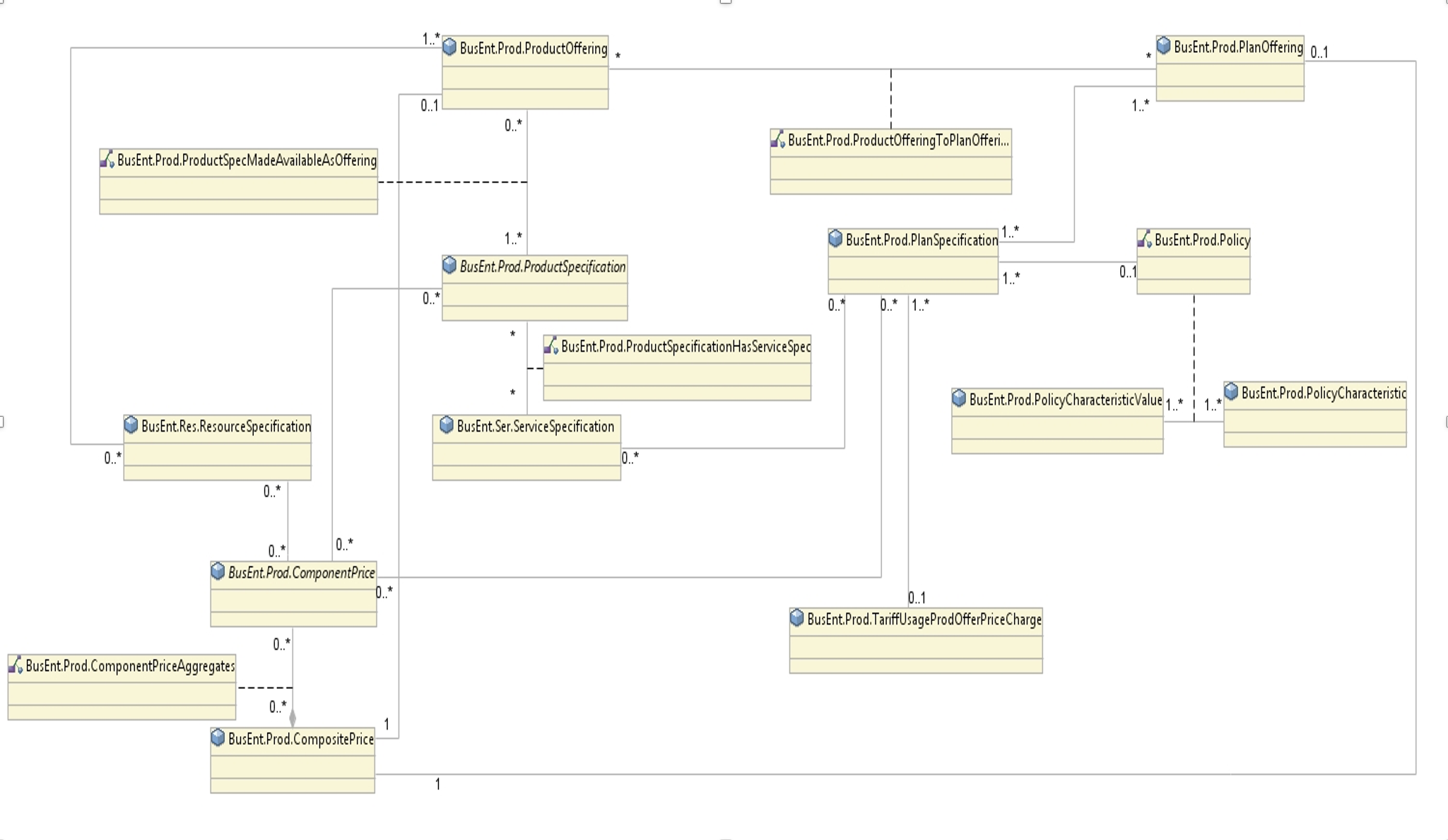

As a part of complete solution design, Data Architecting is required to identify information for implementing end to end solution design. Data Architecting involves designing Conceptual Data Model using business entities and designing Physical Data Model which involves mapping between business entities to system entities.

Conceptual Data Model & Physical Data Model are referred by Solution Architects, Application Architects and Data Architects. SID Aggregate Business entities are typical examples of Conceptual Data model. CDM is mostly represented using E-R models or UML models in some cases leveraging tools like JOSIF, ARIS, and RSA respectively.

It captures the Logical Data Model for Jio Product Catalog (JPC) – Jio Connect(X) to define and distribute product information in a structured and consistent way following the TM Forum SID standards. For online queries into product catalog, our strategy is to keep a replica of the product catalog data into an in-memory database (EDIF). It provides an integration framework between Jio Product Catalog (JPC) – Jio Connect(X) and data consuming systems like EDIF, CRM, OCS, Billing & Invoicing, ERECHARGE, POS, Onboarding Channels, Selfcare Channels etc.

The concept of Jio Product Catalog (JPC) – Jio Connect(X) is to centralize multiple product catalogs across lines of businesses and applications into a unified enterprise catalog which makes it easier to create innovative, convergent offers, as well as to respond quickly to market demands. Jio Product Catalog (JPC) – Jio Connect(X) to be the unified product catalog for the Jio’s businesses like Mobility, Fiber, Air Fiber, IoT, Enterprise.

Key Features of Jio Product Catalog (JPC) – Jio Connect(X)

• Intuitive interface to configure Products, Resources and Services.
• Designed with capability to maintain all Enterprise level Offers at single platform.
• Clone and launch new Product Offers from existing Product Offers.
• Supports effortless modification of existing Offers.
• Efficient and unified mechanism to push data to consumer applications in the ecosystem.
• RESTful APIs supporting CRUD operations.
• Seamless integration with new applications.
• TMForum OpenAPI certified for TMF 620, TMF 633, TMF 634, TMF 657, TMF 760, TMF 679.
• Reduced time to market.
• Reduced CAPEX and OPEX.

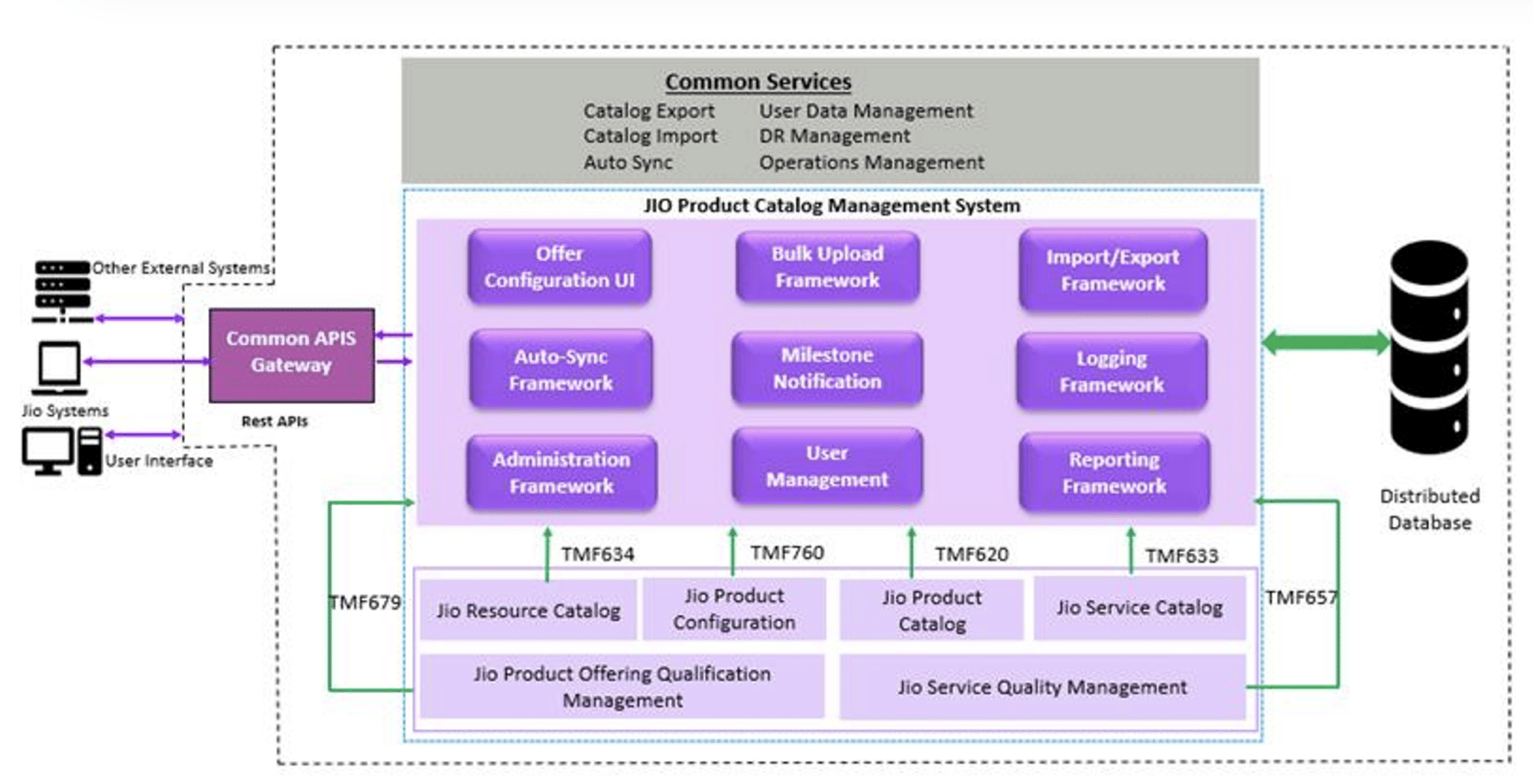

Jio Product Catalog (JPC) – Jio Connect(X) – Component Level Architecture

eTOM and SID Certification Scope

The following two figures represent the Business Process Framework (eTOM) Level 2 processes and the Information Framework (SID) ABEs that were presented in scope for conformance certification.

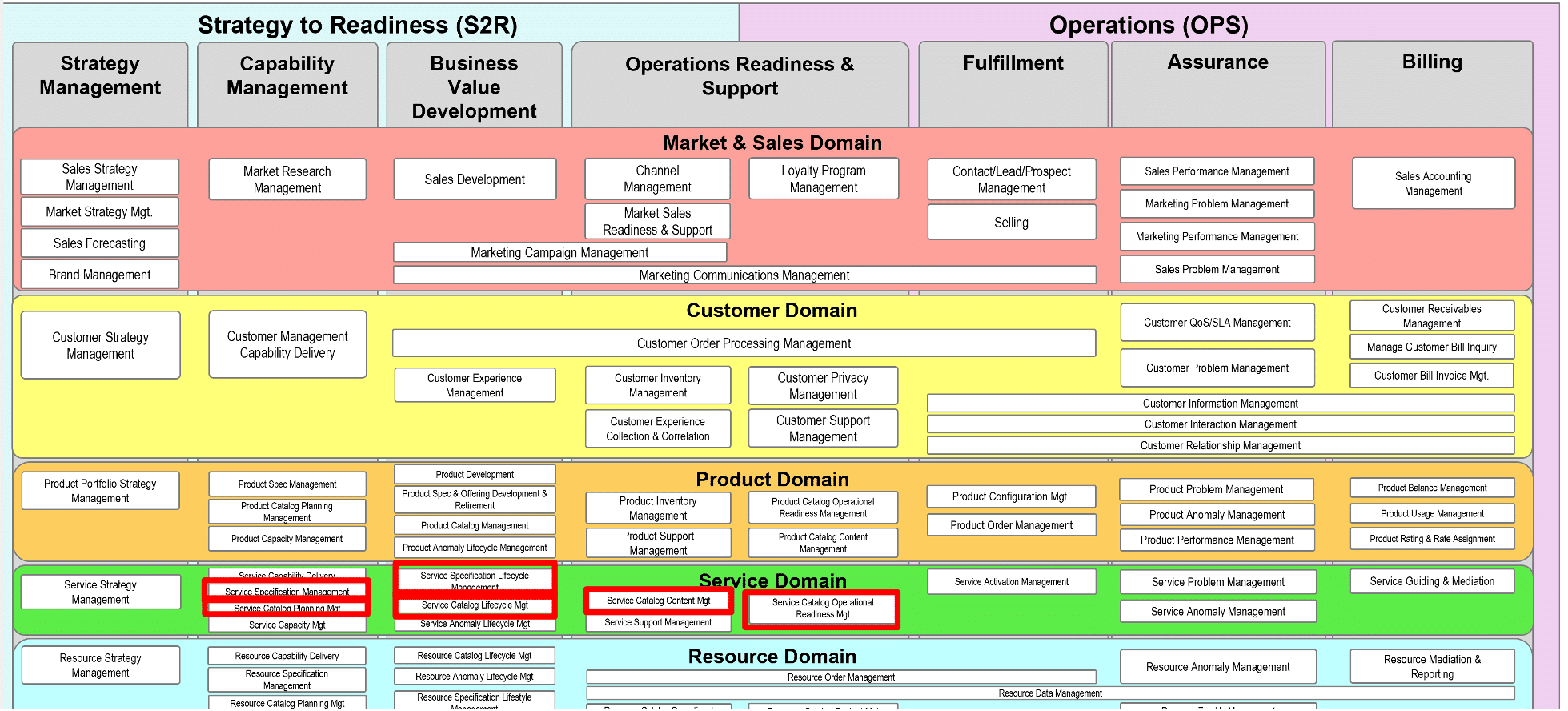

Business Process Framework v24.0 – JIO B2C System – ODA-C-TMFC006 for Jio Product Catalog (JPC)
Jio Connect(X) – Conformance Scope

Level 2 Process coverage for JIO B2C System – ODA-C-TMFC006 for Jio Product Catalog (JPC) – Jio Connect(X) – Conformance Certification

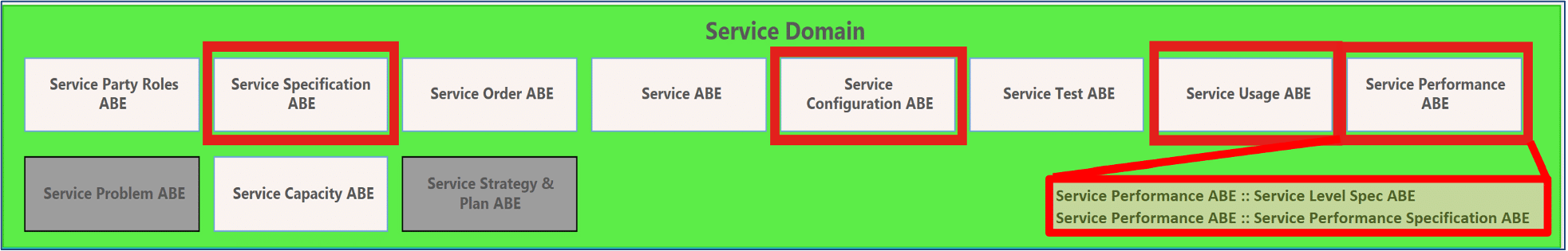

Information Framework (SID) – v24.0 – JIO B2C System – ODA-C-TMFC006 for Jio Product Catalog (JPC)
Jio Connect(X) – Conformance Footprint

Level 1 & 2 ABEs – SID coverage for JIO B2C System – ODA-C-TMFC006 for Jio Product Catalog (JPC) – Jio Connect(X) Conformance Certification

Detailed Certification Report: JIO B2C System for Jio Product Catalog (JPC) – Jio Connect(X)

For more information on JIO B2C System – ODA-C-TMFC001 v2.1.0 – Jio Product Catalog (JPC) – Jio Connect(X) , please contact:

Sudarshan Kumar, JPC Product Manager and Technical Architect ,JIO Platform: [email protected]

Sanjay Dubey, JPC Lead Developer, JIO Platform: [email protected]

Ashish S Kumar, JPC BA and Solution Architect, JIO Platform: [email protected]

Revanna Hadripura, JPC Delivery Head , JIO Platform: [email protected]

For any additional information on this ODA Conformance Certification Report, please contact TM Forum at [email protected]

Report Misuse: Conformance certification is an important part of enabling the communications industry to maintain profitability as it migrates to new services and new business models. Gaining the conformance mark represents a significant investment by both suppliers and service providers. If you feel a company is misusing the conformance mark then please let us know at [email protected].

Disclaimer: TM Forum has conducted no independent testing of the solution for conformance with its frameworks or standards. Such testing has solely been conducted by the supplier or seller of the product and has been self-assessed by the supplier or seller for adherence to the TM Forum framework or standard in question. Accordingly, under no circumstances will TM Forum be liable for any direct or indirect JIO-JPC Connect(X)-eTOM&SID-23.5-CertificationReport_v1.0damages or any costs or losses resulting from the use or reliance by any party of or upon such certification.
