Company: Oracle
Product Title: Application Integration Architecture (AIA)
Product Version: V11.1.1.6
Frameworx Version: Version 12.0
Information Framework Version: Version 12.0
Assessment Completion Date: May 2013
Detailed Certification Report: Detailed Certification Report
Information Framework Assessment Summary
TM Forum has reviewed and approved the self-certification of the solution listed here against Information Frameworx (SID) version 12 Domains/Aggregate Business Entities. Each ABE was measured using an Information Framework (SID) conformance scale of 1–7, with 1 being the lowest, 3 being the acceptable minimum, and 7 being the highest level of conformance.
Scope of Assessment – Information Framework Footprint

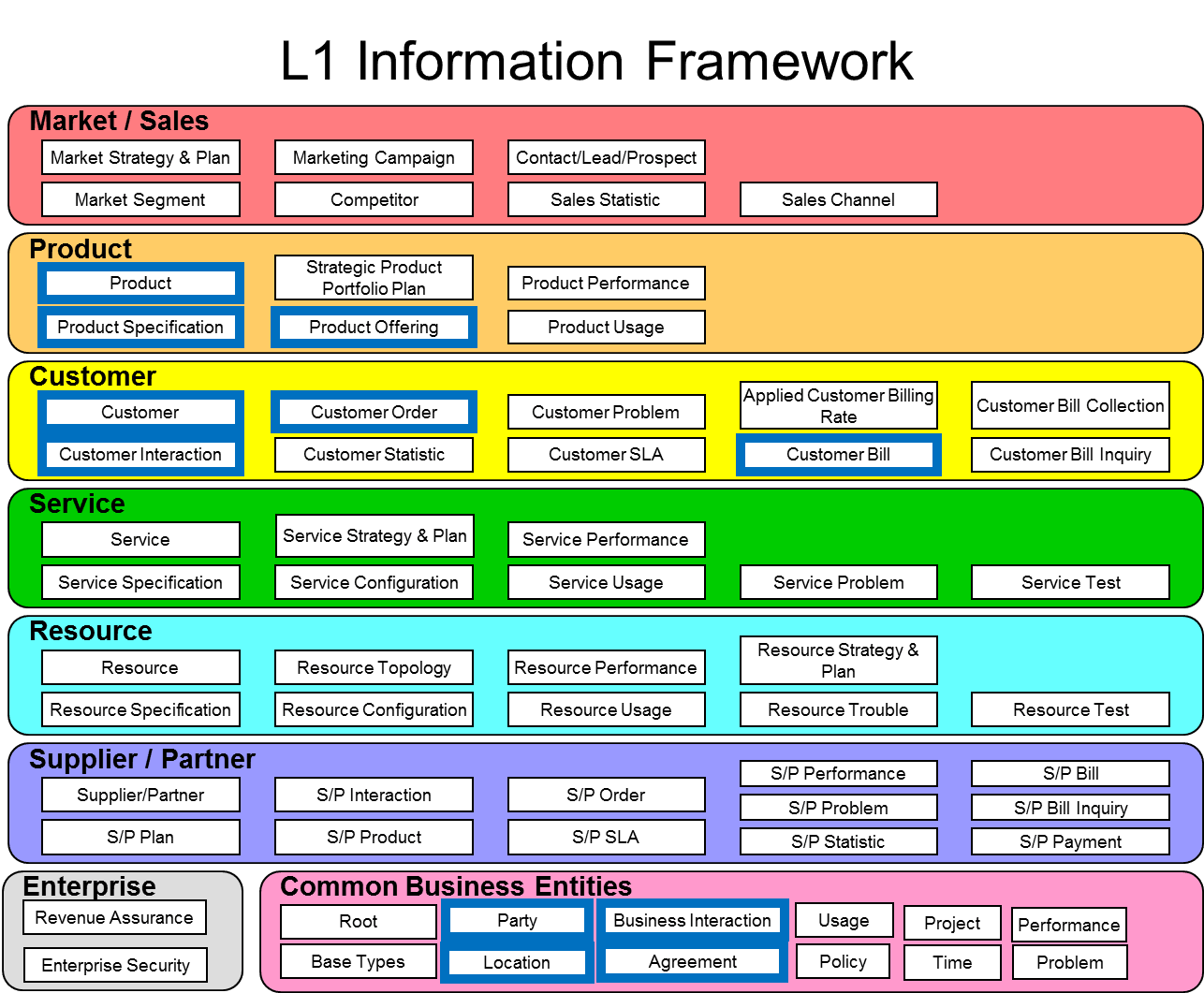

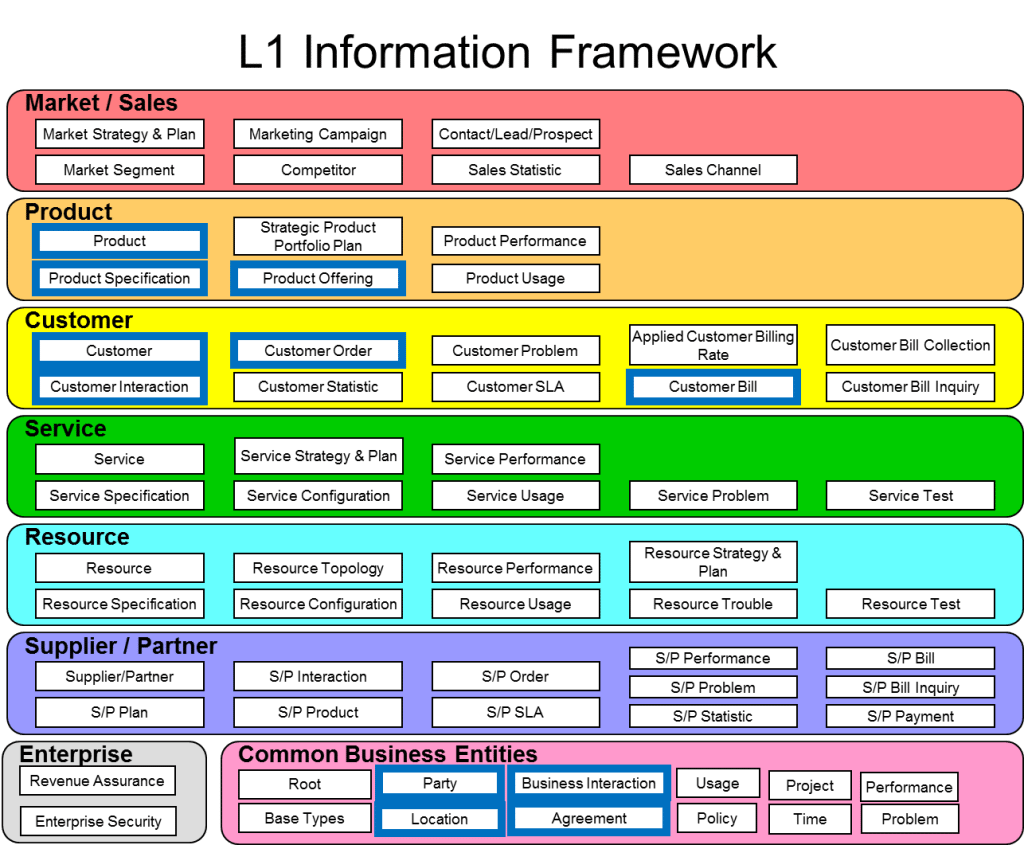

The following diagram in illustrates the Information Framework Level 1 ABEs that were presented in scope for the Assessment.
L1 Information Framework
Product Conformance Summary – Information Framework

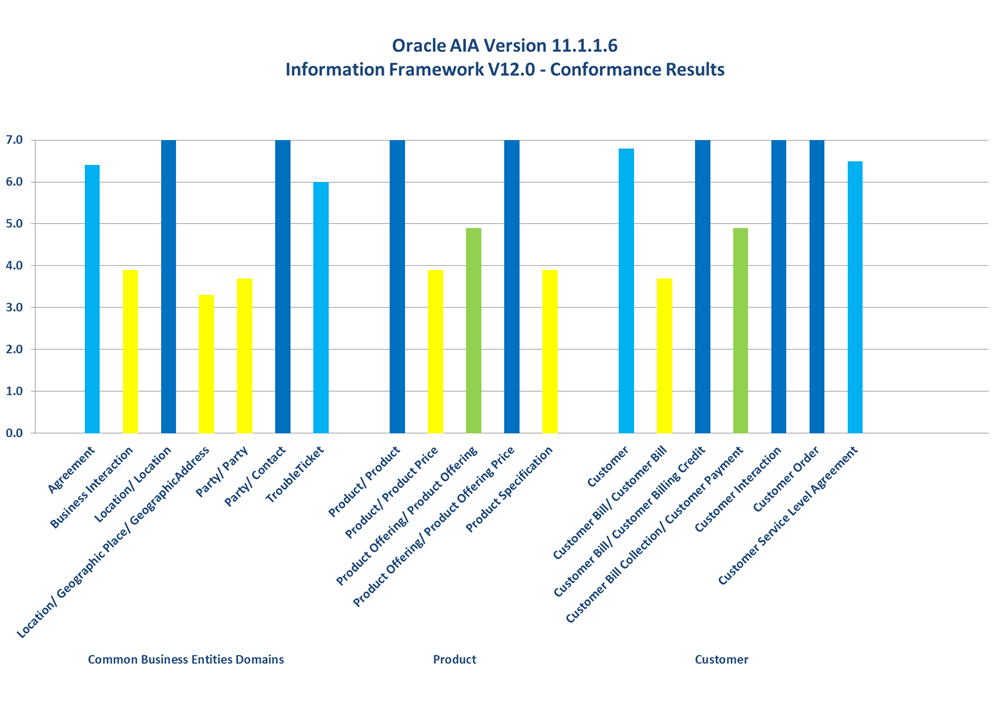

The following graph provides an overview of the conformance levels granted to the ABEs presented in scope for the Oracle AIA product, Information Framework Assessment
Oracle AIA Conformance Results – Common Business Entities, Customer & Product Domains
Product Conformance Detailed – Information Framework
Oracle AIA V11.1.1.6Information Framework (SID) Release 12.0 Conformance |
||
| ABE | Conformance Score | Comment |
| Common Business Entities Domain | ||
| Agreement | 6.4 |
Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, 40% of optional attributes of dependent entities supported. |
| Business Interaction | 3.9 | Core entity, required attributes, 90% of dependent entities supported. |
| Location/ Location | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Location / Geographic Place / GeographicAddress | 3.3 | Core entity, required attributes, 30% of dependent entities supported. |
| Party / Party | 3.7 | Core entity, required attributes, 70% of dependent entities supported. |
| Party / Contact | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| TroubleTicket | 6.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, optional attributes of the core entity. |
| Product Domain | ||
| Product / Product | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Product / Product Price | 3.9 | Core entity, required attributes, 90% of dependent entities supported. |
| Product Offering / Product Offering | 4.9 | Core entity, required attributes, dependent entities, 90% of required attributes of dependent entities. |
| Product Offering/ Product Offering Price | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Product Specification | 3.9 | Core entity, required attributes, 90% of dependent entities supported. |
| Customer Domain | ||
| Customer | 6.8 | Core entity and 80% of required attributes supported. |
| Customer Bill/ Customer Bill | 3.7 | Core entity, required attributes, 70% of dependent entities supported. |
| Customer Bill/ Customer Billing Credit | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Customer Bill Collection/ Customer Payment | 4.9 | Core entity, required attributes, dependent entities, 90% of required attributes of dependent entities. |
| Customer Interaction | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Customer Order | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Customer Service Level Agreement | 6.5 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, 50% of optional attributes of dependent entities supported. |
