Figure 8. Mapping Washing Machine Features to Washing Machine Functions : Object diagram

Created:	5/10/2022 10:15:48 AM
Modified:	5/10/2022 10:16:32 AM
Project:
Author:	Natha Paquette
Version:	1.0.0
Advanced:
ID:	{B3E3EE5A-7865-4d94-9993-51CD8A024E14}

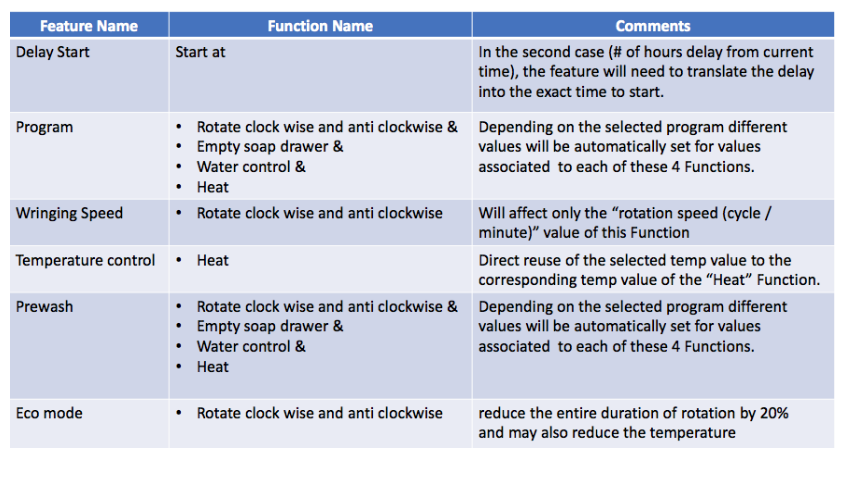

<font color="#29313b">The table below shows how each Feature maps to one or several component RF.<br/>The last column indicates complementary information about how the components RFs are configured based on the parameters of the associated Features. Also, there may be constraints and dependencies between features.</font><br/>
