RegisterOrga Systems has been acquired by Redknee
Company: Orga Systems
Product Title: GOLD
Product Version: Release 2.4
Frameworx Version: Version 12
Information Framework Version: Version 12
Assessment Completion Date: February 2013
Detailed Certification Report: Orga Systems GOLD R2.4 Detailed Certification Report
Information Framework Assessment Summary
TM Forum has reviewed and approved the self-assessment of the solution listed here against Information Frameworx (SID) version 12 Domains/Aggregate Business Entities. Each ABE was measured using an Information Framework (SID) conformance scale of 1–7, with 1 being the lowest, 3 being the acceptable minimum, and 7 being the highest level of conformance.
Scope of Assessment – Information Framework Footprint
The following figure illustrates the Information Framework Level 1 ABEs that were presented in scope for the Assessment, and the textual callouts represent the domain areas of the Orga Systems GOLD product that were assessed and support the corresponding SID ABEs.

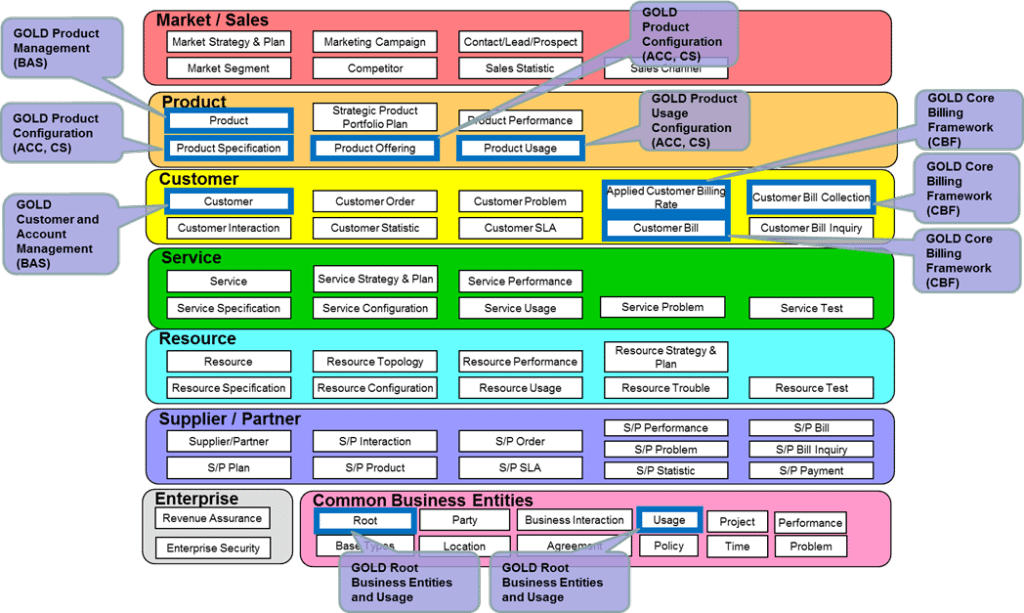

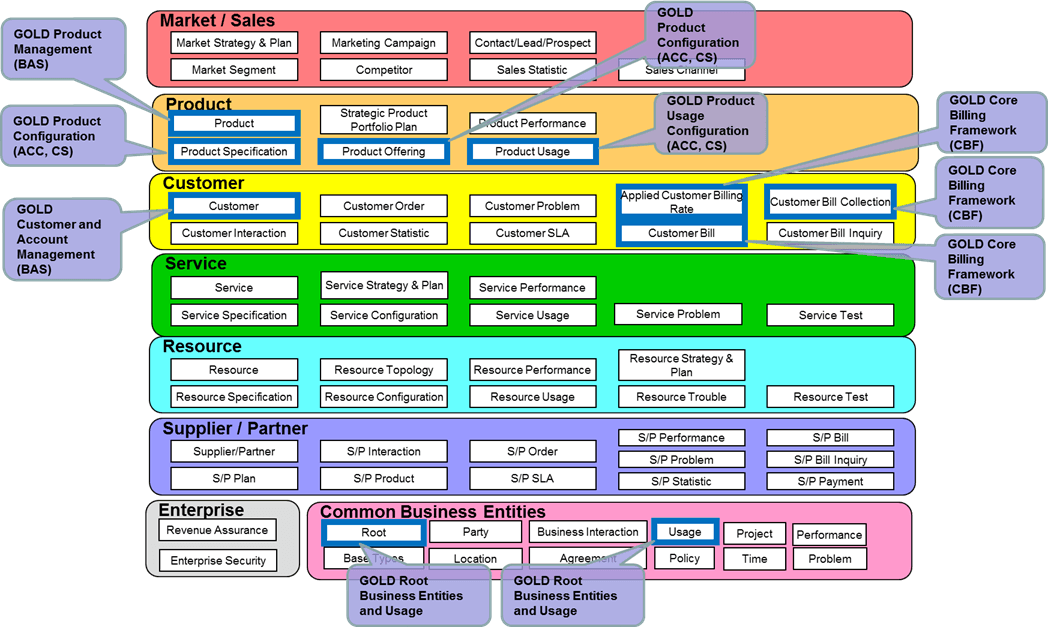

Information Framework Level 1 ABEs in scope for GOLD R2.4 Assessment
Product Conformance Summary – Information Framework
The following graphs provide an overview of the conformance scores granted to the ABEs presented in scope for the Orga Systems GOLD Product, Information Framework Assessment.

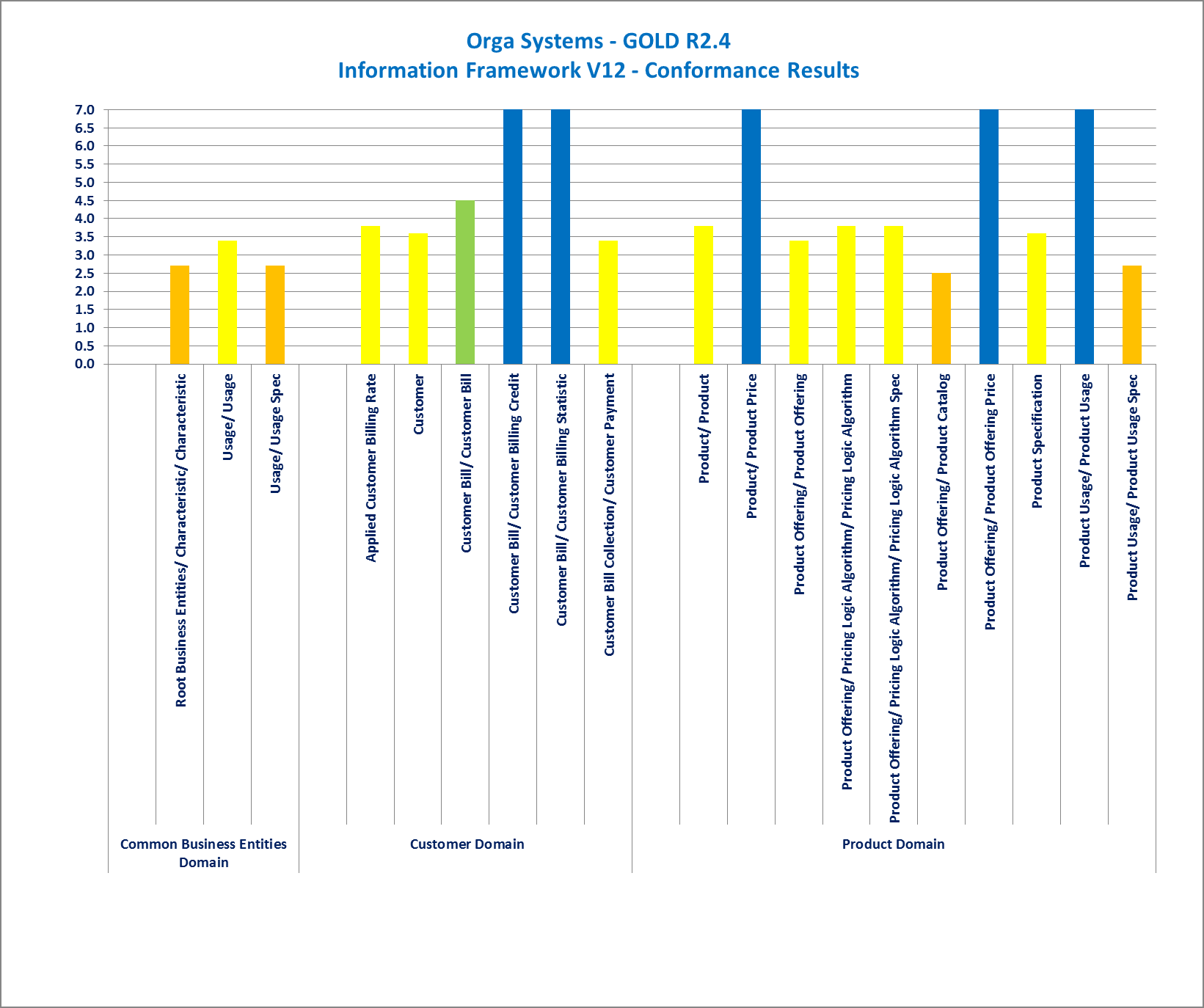

Information Framework – GOLD R2.4 Conformance Result Summary
Product Conformance Detailed – Business Process Framework
The following table provides a more detailed breakdown of the scores awarded with some additional commentary.
Orga Systems GOLD V2.4Information Framework (SID) Release 12Conformance |
||
|
ABE |
Conformance |
Comment |
| Common Business Entities Domain | ||
| Root Business Entities/ Characteristic/ Characteristic | 2.7 | Core entity and 70% of required attributes supported. |
| Usage/ Usage | 3.4 | Core entity, required attributes, 40% of dependent entities supported. |
| Usage/ Usage Spec | 2.7 | Core entity and 70% of required attributes supported. |
| Customer Domain | ||
| Customer | 3.6 | Core entity, required attributes, 60% of dependent entities supported. |
| Applied Customer Billing Rate | 3.8 | Core entity, required attributes, 80% of dependent entities supported. |
| Customer Bill/ Customer Bill | 4.5 | Core entity, required attributes, dependent entities, 50% of required attributes of dependent entities supported. |
| Customer Bill/ Customer Billing Credit | 7 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Customer Bill/ Customer Billing Statistic | 7 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Customer Bill Collection/ Customer Payment | 3.4 | Core entity, required attributes, 40% of dependent entities supported. |
| Product Domain | ||
| Product/ Product | 3.8 | Core entity, required attributes, 80% of dependent entities supported. |
| Product/ Product Price | 7 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Product Offering/ Product Offering | 3.4 | Core entity, required attributes, 40% of dependent entities supported. |
| Product Offering/ Pricing Logic Algorithm/ Pricing Logic Algorithm | 3.8 | Core entity, required attributes, 80% of dependent entities supported. |
| Product Offering/ Pricing Logic Algorithm/ Pricing Logic Algorithm Spec | 3.8 | Core entity, required attributes, 80% of dependent entities supported. |
| Product Offering/ Product Catalog | 2.5 | Core entity and 50% of required attributes supported. |
| Product Offering/ Product Offering Price | 7 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Product Specification | 3.6 | Core entity, required attributes, 60% of dependent entities supported. |
| Product Usage/ Product Usage | 7 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities supported. |
| Product Usage/ Product Usage Spec | 2.7 | Core entity and 70% of required attributes supported. |
Report Misuse: Frameworx conformance is an important part of enabling the communications industry maintains profitability as it migrates to new services and new business models. Gaining the conformance mark represents a significant investment by both suppliers and service providers. If you feel a company is misusing the conformance mark then please let us know at [email protected].
Disclaimer. TeleManagement Forum has conducted no independent testing of the solution for conformance with its frameworks or standards. Such testing has solely been conducted by the supplier or seller of the product and has been self-assessed by the supplier or seller for adherence to the TeleManagement Forum framework or standard in question. Accordingly, under no circumstances will TeleManagement Forum be liable for any direct or indirect damages or any costs or losses resulting from the use or reliance by any party of or upon such certification.
