Company: Portugal Telecom Inovação, S.A.
Product Title: NOSSIS Suite
Product Version: Version 2.0
Frameworx Version: Version 12
Information Framework Version: Version 12
Assessment Completion Date: October 2012
Detailed Certification Report: Portugal Telecom Inovação, S.A. NOSSIS Suite Version 2.0 Detailed Conformance Report
Information Framework Assessment Summary
TM Forum has reviewed and approved the self-assessment of the solution listed here against Information Frameworx (SID) version 12 Domains/Aggregate Business Entities. Each ABE was measured using an Information Framework (SID) conformance scale of 1–7, with 1 being the lowest, 3 being the acceptable minimum, and 7 being the highest level of conformance.
Scope of Assessment – Information Framework Footprint

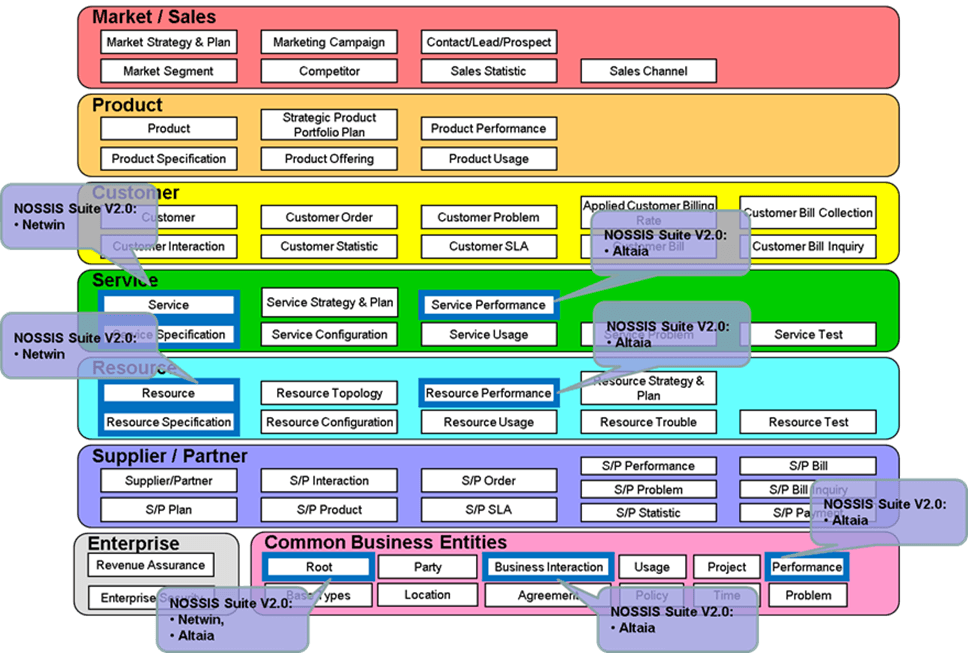

The following figure illustrates the Information Framework Level 1 ABEs that were presented in scope for the Assessment, and the textual callouts represent the domain areas of the Portugal Telecom Inovação, S.A. NOSSIS Suite that were assessed and support the corresponding SID ABEs.
Information Framework 12 – Level 1 ABEs in scope for NOSSIS V2.0 Assessment
Product Conformance Summary – Information Framework

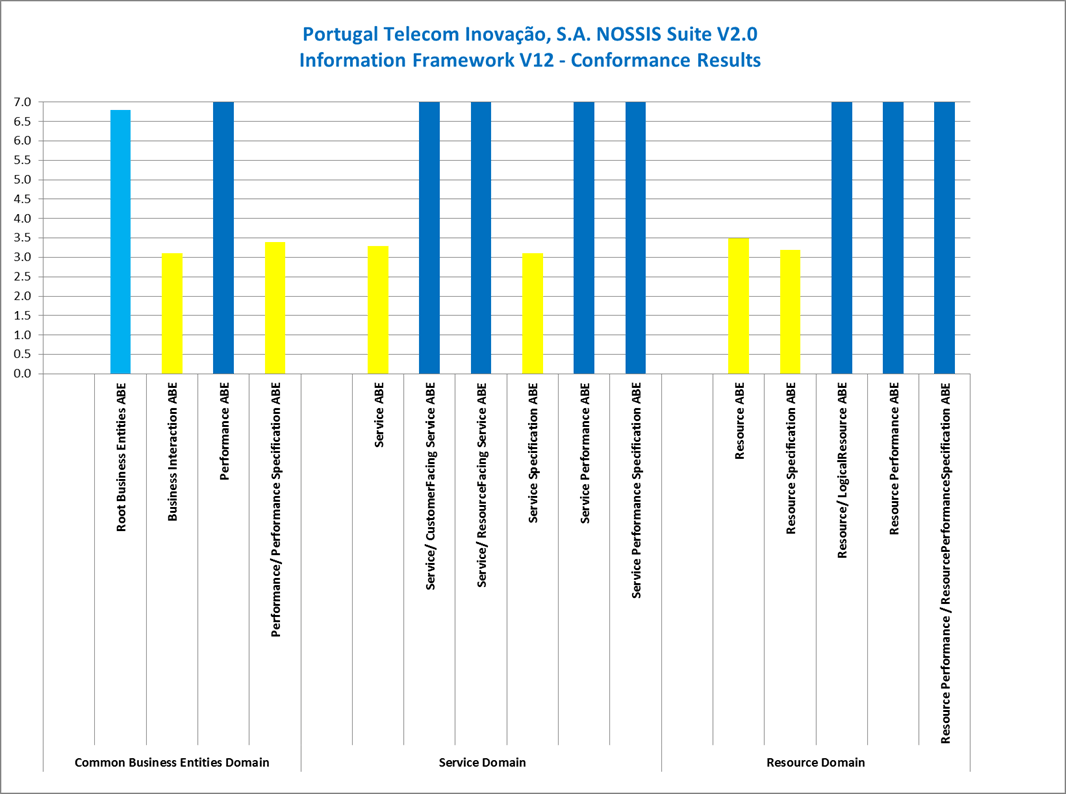

The following graphs provide an overview of the conformance scores granted to the ABEs presented in scope for the Portugal Telecom Inovação, S.A. NOSSIS Suite, Information Framework Assessment.
Information Framework – NOSSIS Suite V2.0 Conformance Result Summary
Product Conformance Detailed – Business Process Framework
PT Inovação NOSSIS SUITE Release 2.0Information Framework (SID) Release 12 Conformance |
|||
|
Information Framework (SID) Domain |
Information Framework (SID) ABE |
Conformance Score |
Comment |
| Enterprise Domain | |||
| Common Business Entities Domain | |||
| Root Business Entities ABE | 6.8 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all required attributes of dependent entities, 80% of dependent entity optional attributes. | |
| Business Interaction ABE | 3.1 | Core entity, required attributes, 10% of dependent entities. | |
| Performance ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities. | |
| Performance/ Performance Specification ABE | 3.4 | Core entity, required attributes, 40% of dependent entities. | |
| Service Domain | |||
| Service ABE | 3.3 | Core entity, required attributes, 30% of dependent entities. | |
| Service/ CustomerFacing Service ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities.
TM Forum Notes:
|
|
| Service/ ResourceFacing Service ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities.
TM Forum Notes:
|
|
| Service Specification ABE | 3.1 | Core entity, required attributes, 10 % of dependent entities. | |
| Service Performance ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities. | |
| Service Performance Specification ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities. TM Forum note: See Performance Specification conformance score. |
|
| Resource Domain | |||
| Resource ABE | 3.5 | Core entity, required attributes, 50% of dependent entities. | |
| Resource Specification ABE | 3.2 | Core entity, required attributes, 20% of dependent entities. | |
| Resource/ LogicalResource ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities.
TM Forum Notes:
|
|
| Resource Performance ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities. | |
| Resource Performance/ Resource Performance Specification ABE | 7.0 | Core entity, required attributes, dependent entities, required attributes of dependent entities, all attributes of the core entity, all attributes of dependent entities. TM Forum note: See Performance Specification conformance score. |
|
