Conformance Certification: Ericsson CBiO
Company: Ericsson
Product Title: Ericsson Charging & Billing in One (CBiO)
Product Version: V3.X
Frameworx Version: Version 13.0
Information Framework version: Version 13.0
Assessment Completion Date: August 2014
Detailed Certification Report: Ericsson CBiO Frameworx 13.0 Conformance Certification Report
Information Framework Assessment Summary
TM Forum has reviewed and approved the self-assessment of the product listed here against Information Frameworx (SID) version 13.0 Domains/Aggregate Business Entities. Each ABE was measured using an Information Framework (SID) conformance scale of 1–7, with 1 being the lowest, 3 being the acceptable minimum, and 7 being the highest level of conformance.
Scope of Assessment – Information Framework Footprint

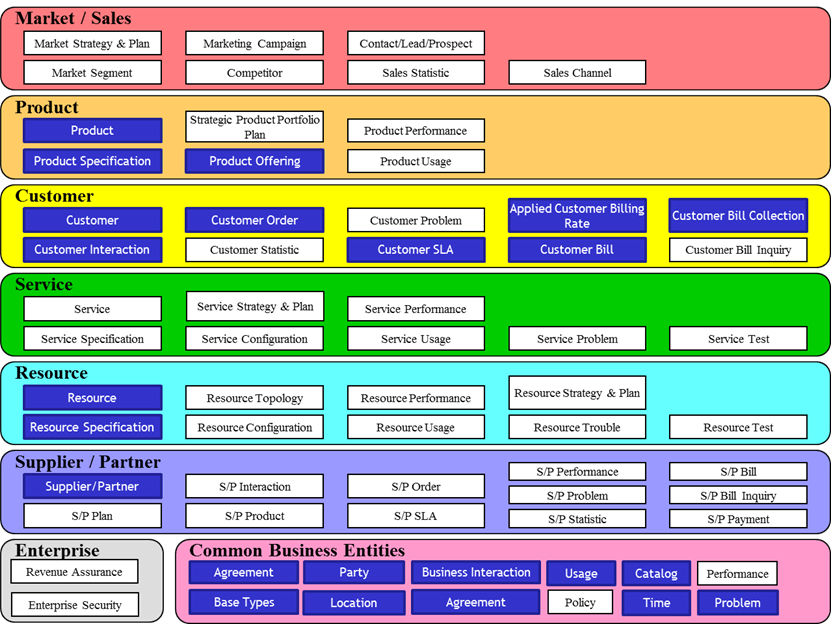

The following figure illustrates the Information Framework Level 1 ABEs that were presented in scope for the Assessment (blue high-light).
Operations Level 2 processes in scope for Ericsson CBiO Assessment
Product Conformance Summary – Information Framework
The following graphs provide an overview of the conformance scores granted to the ABEs presented in scope for Ericsson CBiO, Information Framework Assessment.

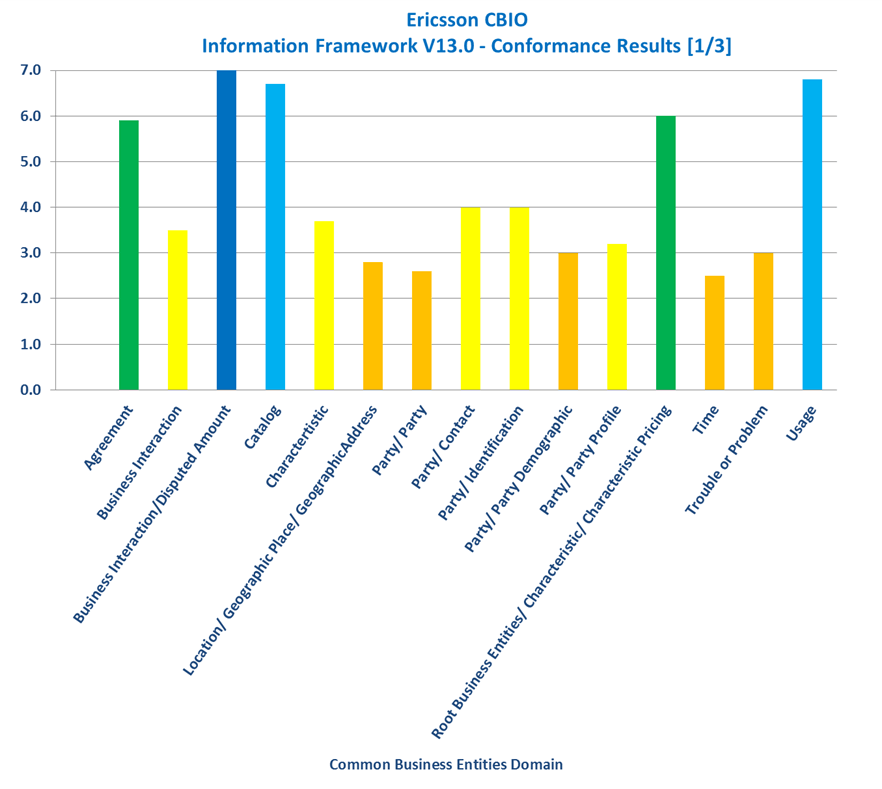

Conformance Result Summary [1/3] – Common Business Entities Domain

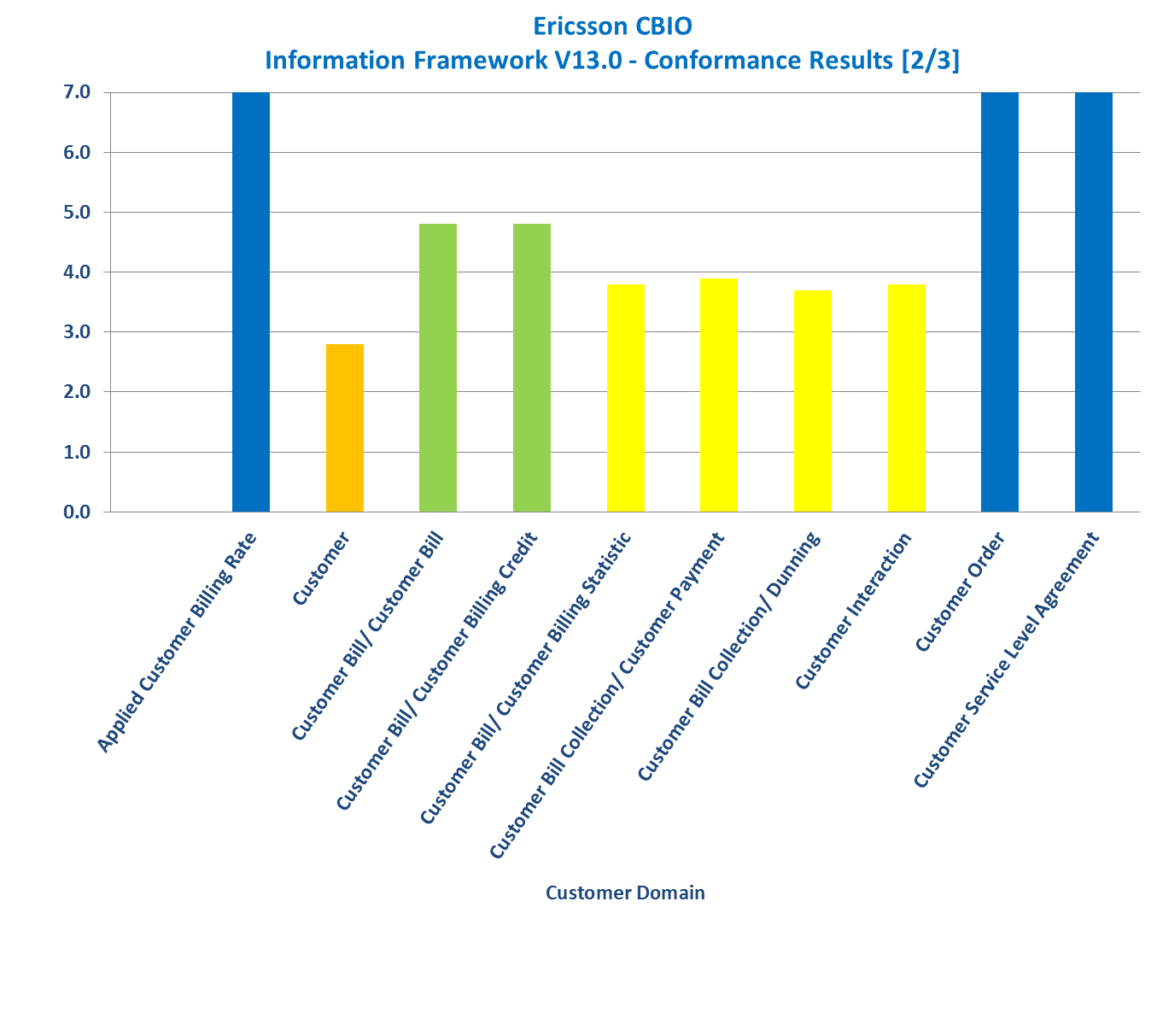

Conformance Result Summary [2/3] – Customer Domain

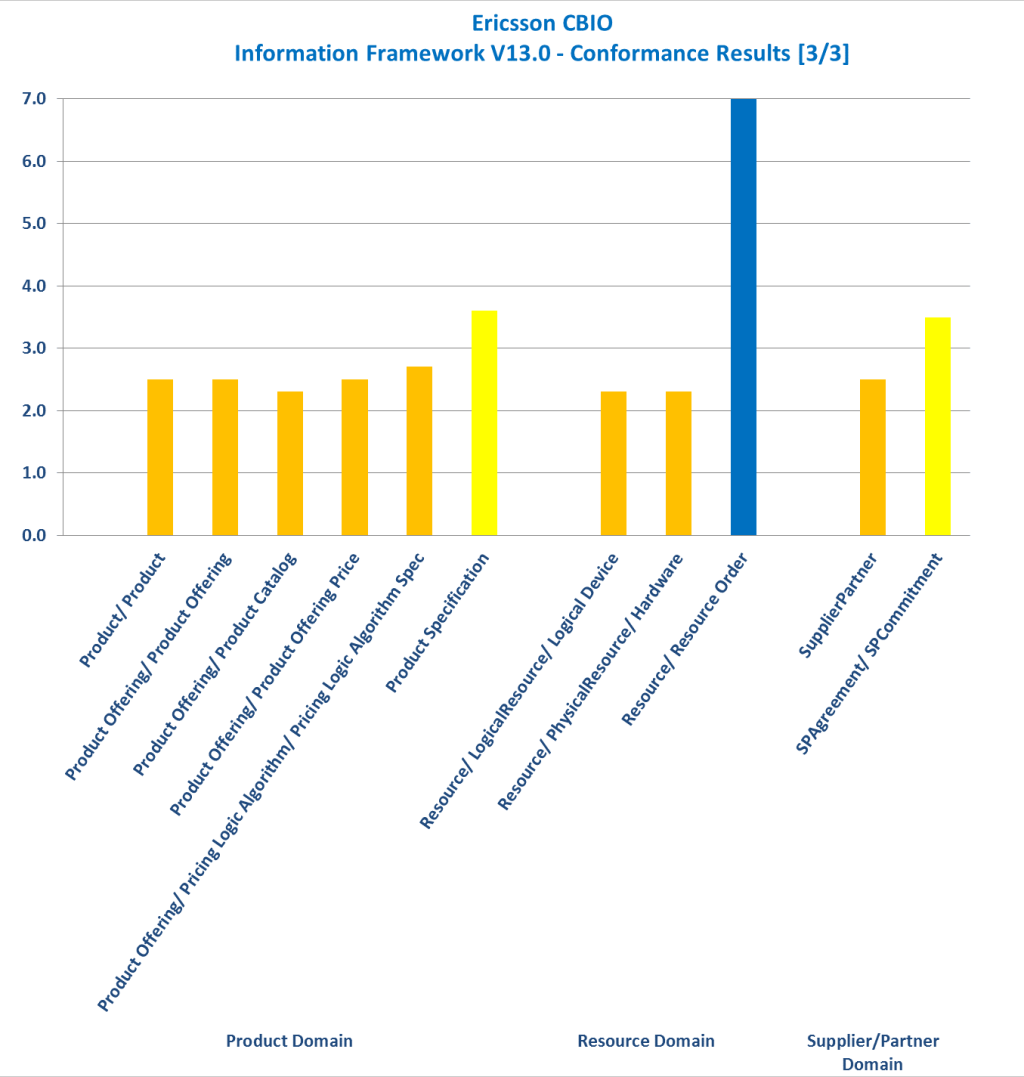

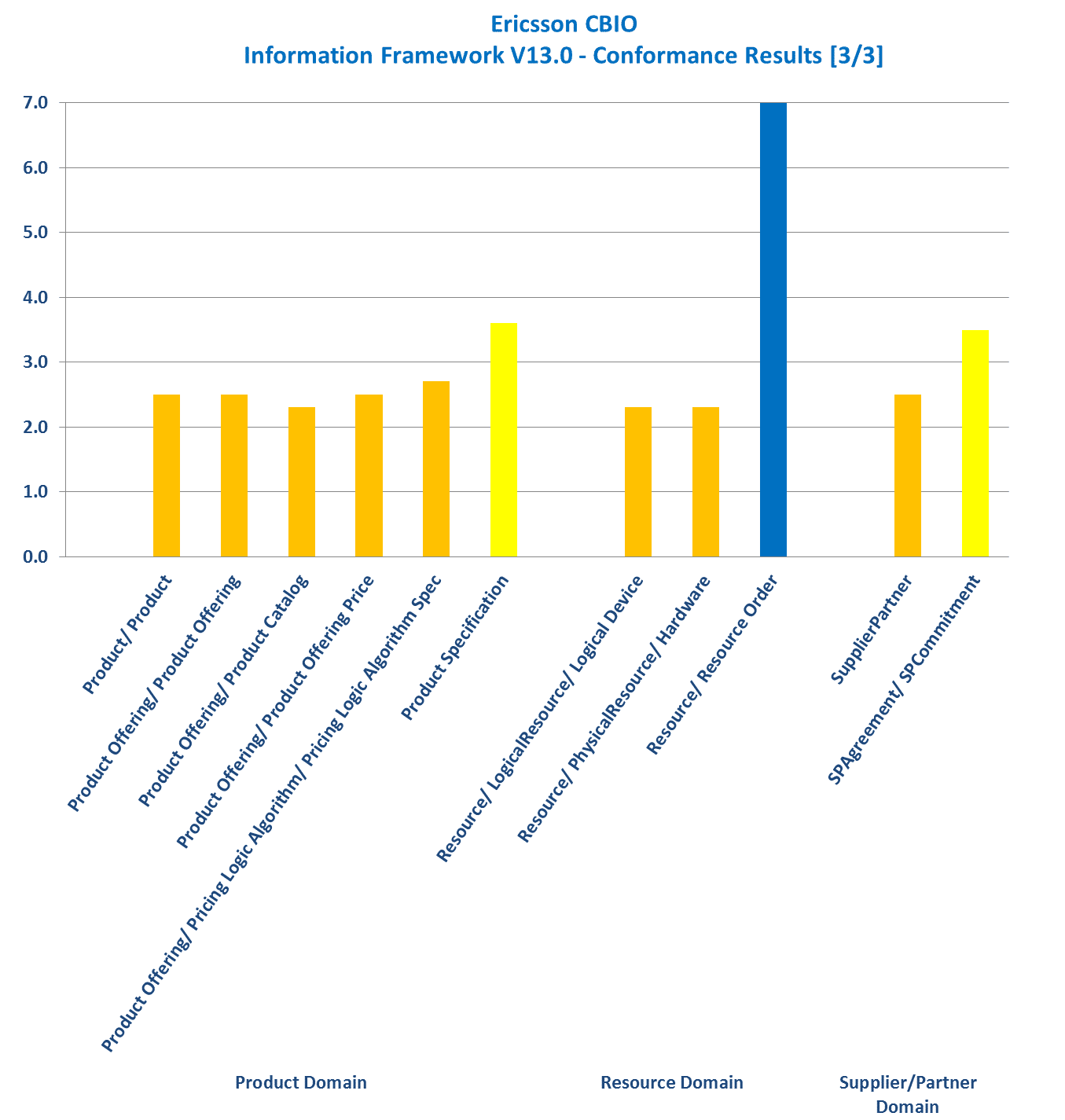

Conformance Result Summary [3/3] – Product, Resource & Supplier/Partner Domains
Product Conformance Detailed – Information Framework
The following table provides a detailed breakdown of the scores awarded with some additional commentary.
Ericsson CBIOFrameworx 13.0 Information Framework (SID) Conformance Scores |
||
|
Aggregate Business Entity (ABE) |
Conformance Score |
Additional Comments |
|
Common Business Entities Domain |
||
|
Agreement |
5.9 |
14/15 required attributes of dependent entities supported |
|
Business Interaction |
3.5 |
6/12 dependent entities supported |
|
Business Interaction/Disputed Amount |
7 |
Full conformance |
|
Catalog |
6.7 |
2/3 optional attributes of dependent entities supported |
|
Charactertistic |
3.7 |
5/7 dependent entities supported |
|
Location/ Geographic Place/ GeographicAddress |
2.8 |
3/4 required attributes of core entity supported |
|
Party/ Party |
2.6 |
3/5 required attributes of core entities (Party and PartyRole) |
|
Party/ Contact |
4 |
0/4 required attributes of dependent entities supported |
|
Party/ Identification |
4 |
0/10 required attributes of dependent entities supported |
|
Party/ Party Demographic |
3 |
0/7 dependent entities supported |
|
Party/ Party Profile |
3.2 |
1/5 dependent entities supported |
|
Root Business Entities/ Characteristic/ Characteristic Pricing |
6 |
0/1 optional attributes of dependent entity supported |
|
Time |
2.5 |
1/2 required attributes of core entity supported |
|
Trouble or Problem |
3 |
0/2 dependent entities supported |
|
Usage |
6.8 |
4/5 optional attributes of dependent entities supported |
|
Customer Domain |
||
|
Applied Customer Billing Rate |
7 |
Full conformance |
|
Customer |
2.8 |
4/5 required attributes of core entity supported |
|
Customer Bill/ Customer Bill |
4.8 |
15/18 required attributes of dependent entities supported |
|
Customer Bill/ Customer Billing Credit |
4.8 |
6/8 required attributes of dependent entities supported |
|
Customer Bill/ Customer Billing Statistic |
3.8 |
9/11 dependent entities supported |
|
Customer Bill Collection/ Customer Payment |
3.9 |
6/7 dependent entities supported |
|
Customer Bill Collection/ Dunning |
3.7 |
5/7 dependent entities supported |
|
Customer Interaction |
3.8 |
4/5 dependent entities supported |
|
Customer Order |
7 |
Full conformance |
|
Customer Service Level Agreement |
7 |
Full conformance |
|
Product Domain (9 ABEs) |
||
|
Product/ Product |
2.5 |
1/2 required attributes of core entity supported |
|
Product Offering/ Product Offering |
2.5 |
2/4 required attributes of core entity supported |
|
Product Offering/ Pricing Logic Algorithm/ Pricing Logic Algorithm |
2.7 |
2/3 required attributes of core entity |
|
Product Offering/ Product Catalog |
2.3 |
1/3 required attributes of core entity supported |
|
Product Offering/ Product Offering Price |
2.5 |
1/2 required attributes of core entity supported |
|
Product Specification |
3.6 |
9/15 dependent entities supported |
|
Resource Domain (3 ABEs) |
||
|
Resource/ LogicalResource/ Logical Device |
2.3 |
2/7 required attributes of core entity supported |
|
Resource/ PhysicalResource/ Hardware |
2.3 |
2/7 required attributes of core entity supported |
|
Resource/ Resource Order |
7 |
Full conformance |
|
Supplier/Partner Domain (2 ABEs) |
||
|
SupplierPartner |
2.5 |
3/6 required attributes of core entities (Supplier and Partner) supported |
|
SPAgreement/ SPCommitment |
3.5 |
2/4 dependent entities supported |
